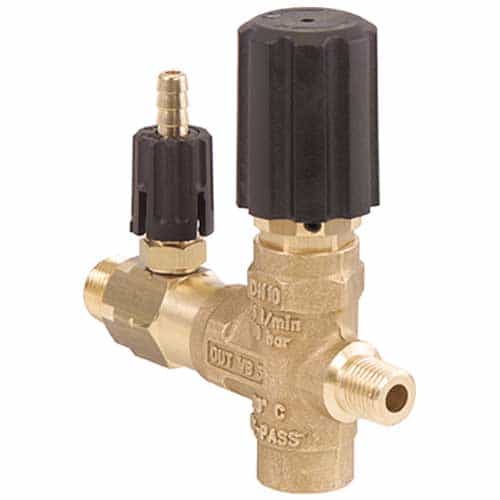

General Pump YVB3KTT Pressure Trapping Unloader -1/4 Inch Inlet, 3/8 Inch Discharge, 6.5 GPM, 3600 PSI
Brand:
Mfr. Model #:
YVB3KTT
KR Part #:
GPYVB3KTT
Weight:
1.00 lbs
GTIN:
682491142553
(0)A brass unloader used to protect pump systems from dangerous pressure levels. Adjustable locknut to adjust maximum pressure setting. Handles a maximum flow rate of 6.5 GPM and pressure of 3600 PSI.
Prop 65
Technical Specifications
Max PSI: 3600
Max GPM: 6.5
Inlet Port: 1/4 inch
Outlet Port: 3/8 inch
Max Temperature: 195 degrees F
Product Description
Compact Unloader
General Pump's YVB3KTT is trapped pressure unloader to protect equipment from excessive pressure. Constructed with a brass body and stainless-steel components. Built to withstand a maximum pressure of 3600 PSI and maximum flow rate of 6.5 GPM. This unloader is equipped with an adjustable locknut enabling the user to set the maximum pressure level matching their system's requirement.
Specifications:
- Max Volume: 6.5 GPM
- Max Discharge Pressure: 3600 PSI
- Max Fluid Temp: 195° F
- Inlet Port: 1/4" NPT-M (BSP-M)
- Discharge Port: 3/8" NPT-M (BSP-M)
- Bypass Port: 3/8" NPT-F (BSP-F)
- Body: Brass
- Inner Components: Stainless Steel
- Seal: Buna-N
- Other Parts: Plastic
- Dimensions: 3.07"x1.26"x4.5"
- Weight: 1.0 lbs.
UPC:
- GTIN: 682491142553
