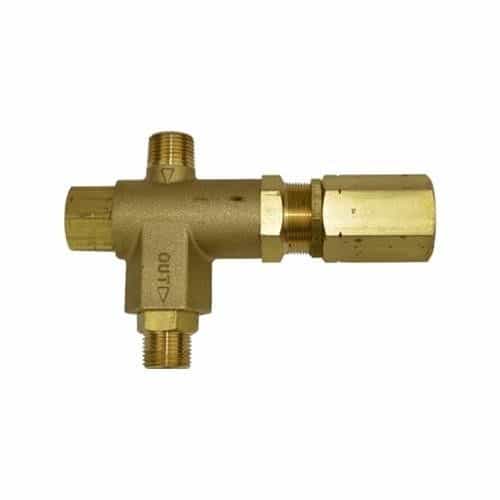

CAT Pumps 7600S Brass Pressure Regulating Unloader - 3500 PSI, 5 GPM, 3/8 NPT
Brand:
Mfr. Model #:
7600S
KR Part #:
PU07600
Weight:
1.36 lbs
GTIN:
814338023200
Availability:
3
Manuals
(0)Brass construction unloader that regulates the pressure in both single and multiple gun applications. 5 GPM max, 3500 PSI max, 3/8" NPT inlet and discharge ports.
Prop 65
Product Description
Cat Unloader 700-3500 PSI, 2-5 GPM
Protect your system from over-pressurization! The CAT Pumps 7600S unloader has a max flow of 5 GPM and a maximum pressure rating of 3500 PSI. This pressure regulating unloader maintains a set pressure and goes into bypass mode when the trigger is released or there is an obstruction downstream.
Dimensions: 3.25" x 1.0" x 4.81"
Specifications:
- Brass construction
- Pressure Range: 700-3500 PSI
- Maximum Temperature: 180° Fahrenheit
- Flow Rate Range: 2.0 to 5.0 GPM
- Inlet Port: 3/8" MNPT
- By-pass Port: 3/8" FNPT
- Outlet Port: 3/8" MNPT
- Weight: 21.4 oz.
