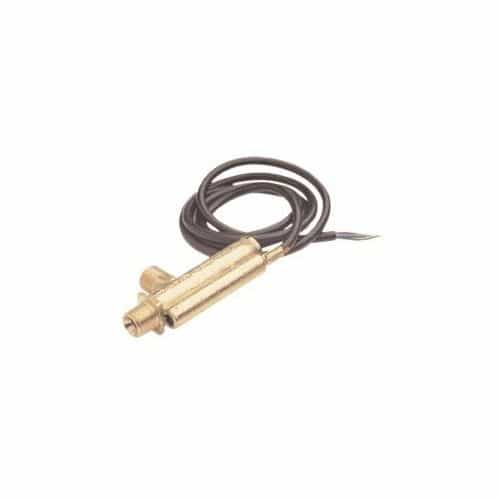

General Pump YFLOSWITCH Flow Switch - 8.0 GPM, 4050 PSI, 3/8 x 3/8 Inch BSP-M
Brand:
Mfr. Model #:
YFLOSWITCH
KR Part #:
ST0390
Weight:
0.65 lbs
GTIN:
682491027683
Availability:
3
(0)A flow switch that triggers electronic devices once pressure reaches a specified setting. Handles a maximum flow rate of 8.0 GPM. Sustains a maximum temperature of 175°F.
Note: Mount in vertical position only.
Prop 65
Technical Specifications
Max PSI: 4050
Max Temperature: 175 degrees F
Max GPM: 8
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Product Description
Pump Pressure Monitor
General Pump's YFLOSWITCH is a flow switch that triggers electronic devices and other equipment to turn on or off at a selected pressure level. Handles a constant pressure 3650 PSI and a 4050 PSI maximum pressure. Equipped with a 3/8-inch BSP-M Inlet and a 3/8 Inch BSP-M. Mount only in a vertical position.
Specifications:
- GPM: 8.0
- Rated PSI: 3650
- Max PSI: 4050
- Temperature: 175 deg F
- Inlet: 3/8" BSP-M
- Outlet: 3/8" BSP-M
- Amp: 1
- Volts: 250
- Cord: 48_
- Dimensions: 3.8" x 1.7" x 0.8"
- Cord Length: 36"
- Weight: 0.65 lbs.
