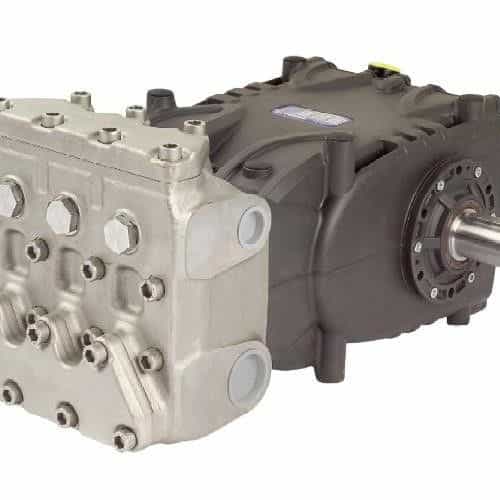

General Pump KF40A Right-Hand KF Series Triplex Plunger Pump - 45 GPM, 1600 PSI
Brand:
Mfr. Model #:
KF40A
KR Part #:
GPKF40A
Weight:
150.00 lbs
GTIN:
682491026686
(0)Next-generation technology in a triplex plunger pump perfect for car wash and pressure wash applications! Redesigned sealing areas feature new spherical design for high volumetric efficiency. Flow of up to 45 GPM, at up to 1600 PSI.
Freight Only
Technical Specifications
Bore: 40 millimeter
Crankcase Capacity: 128.5 ounce
Horsepower: 49
Inlet Port: 1 1/2 inch
Max GPM: 45
Shaft Diameter: 40 millimeter
Stroke: 50 millimeter
Max PSI: 1600
RPM: 900
Max Temperature: 140 degrees F
Product Description
KF Series 45 GPM Pump
The KF40A KF Series Pump from General Pump features next-generation technology in a triplex plunger pump perfect for car wash and pressure wash applications! Redesigned sealing areas feature new spherical design for high volumetric efficiency. Durable high-resistance light allow die cast aluminum crankcase and 420 stainless steel nickel-treated manifold provide for long life span even in harsh environments. Pair with available SAE-C hydraulic drive bell housing and flexible couplers for easy integration.
Dimensions: 20.7" x 14.5" x 9.9"
Features:
- Patent-pending, symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion
- Low-high pressure packing design with integrated cooling system
- High volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas
- Splash lubrication
- Solid ceramic plungers, stainless steel valves
- Special antifriction, forger, light allow connecting rods
- Max Flow: 45 GPM
- Max Pressure: 1600 PSI
- 900 RPM
- Bore: 40mm
- Stroke: 50mm
- Shaft Diameter: 40mm
- Horsepower: 49
- Maximum Fluid Temperature: 140° F
- Inlet Port: 1.5" NPT-F
- Outlet Port: 1" NPT-F
