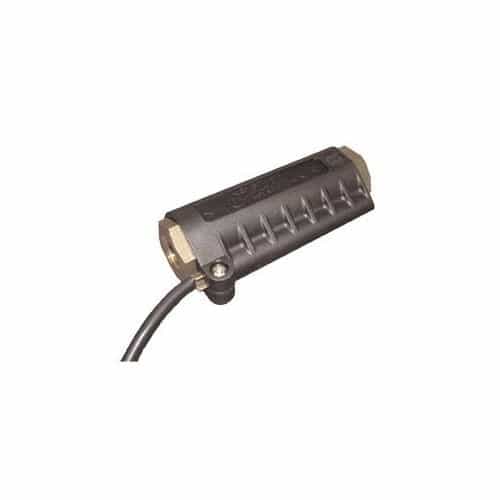

General Pump YFL7SWITCH Flow Switch - 8 GPM, 5650 PSI
Brand:
Mfr. Model #:
YFL7SWITCH
KR Part #:
ST0392
Weight:
0.97 lbs
GTIN:
682491072126
(0)A 3/8 inch flow switch for pressure washing systems. The flow switch detects the presence of water flow on the inside of the system by means of a piston which is shifted by the water itself. When the piston is moved by the water flow, the magnets contained internally stimulate a reed switch that closes the electric circuit.
Prop 65
Technical Specifications
Max PSI: 5650
Max Temperature: 165 degrees F
Max GPM: 8
Voltage AC: 230
Product Description
3/8" Flow Switch
This flow switch YFL7SWITCH can be installed horizontally or vertically. A valuable accessory for your pressure washing system, this high pressure flow switch has an operating pressure of 5100 PSI, maxing out at 5650 PSI. Please note: May not be used for starting motors, will not handle start-up current.Specifications:
- Maximum Pressure: 5650 PSI
- Maximum Flow: 8.0 GPM
- Activation Flow Rate: Horizontal-1.6 GPM, Vertical-2.4 GPM
- Temperature: 165 degrees F
- Maximum Volts: 230V
- Maximum Amps: 3 amp
- Inlet: 3/8" BSPF
- Discharge: 3/8" BSPF
- Dimensions: 4.4" x 3.3"
- Weight: 0.86 Lbs
- Materials: Plastic, Brass, Buna-N, Stainless Steel
