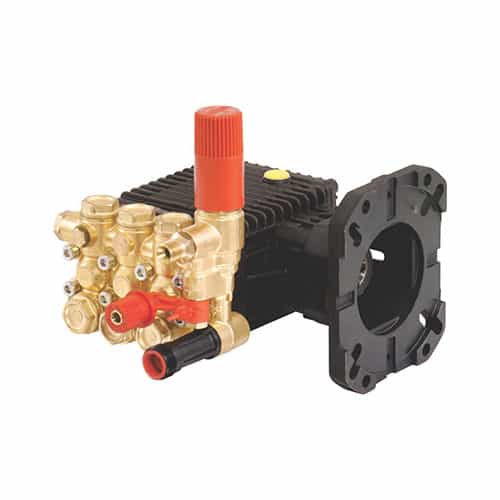

General Pump EZ2536EUI Flanged Mounting Ready Triplex Plunger Pump - 3.6 GPM, 2500 PSI, 1750 RPM
Brand:
Mfr. Model #:
EZ2536EUI
KR Part #:
GPEZ2536EUI
Weight:
22.00 lbs
GTIN:
682491119906
(0)Created with solid ceramic plungers. Stainless-steel inlet and outlets. Oil-bath crankcase crafted with anodized aluminum. Note: Includes mounting flange, unloader and injector.
Prop 65
Technical Specifications
Bore: 18 millimeter
Crankcase Capacity: 14 ounce
Inlet Port: 1/2 inch
Max GPM: 3.6
Max PSI: 2500
Shaft Diameter: 28.5 millimeter
Stroke: 11 millimeter
RPM: 1750
Max Temperature: 165 degrees F
Product Description
EZ Series 44 E
Pressure cleaning pumps are designed with solid ceramic plungers and a NEMA184C mounting flange. Incorporates unitized stainless-steel inlet and discharge valves. Employs a die-cast anodized aluminum oil-bath crankcase. Flanged for direct coupling to electric motors and includes unloader and downstream injector.
Specifications:
- GPM: 3.6
- PSI: 2500
- RPM: 1750
- Bore: 0.708 in./18 mm
- Stroke: 0.433 in./11 mm
- HP: 6.2 EBHP
- Maximum Inlet Pressure: 125 PSI
- Maximum Inlet Vacuum: 3 ft. water (2.6 in. Hg)
- Plunger Bore: .708 in.
- Plunger Stroke: .433 in.
- Crankcase Oil Capacity: 14.0 oz.
- Maximum Fluid Temperature: 165°F
- Inlet Port Thread: 1/2" BSPP-F
- Discharge Port Thread: 3/8" BSPP-F
- Shaft Diameter: 1.125 in. / 28.5 mm
- Ship Weight: 18.5 lbs.
- Dimensions: 8.8 in. x 8.8 in. x 6.3 in.
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
