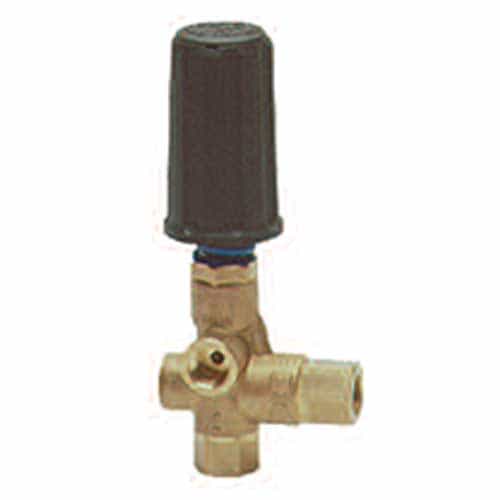

General Pump PLSR4HVNCV Balanced Unloader with No Check Valve - 10 GPM, 2600 PSI, 3/8 x 3/8
Brand:
Mfr. Model #:
PLSR4HVNCV
KR Part #:
GPU4HVNCV
Weight:
1.00 lbs
(0)This balanced pressure unloader is made of brass with stainless steel and Viton inner components. It has a blue spring and a plastic adjustable control knob. Eliminate excess pressure to protect equipment and maintain proper flow in a high-pressure system. 10 GPM, 2600 PSI, 3/8" NPT-F (x2) x 3/8" NPT-F.
Prop 65
Product Description
2600 PSI Pressure Unloader with Blue Spring
The General Pump PLSR4HVNCV Unloader is a trapped pressure relief valve ideal for systems using a gas engine. This device eliminates back pressure in the system when pulling manual start engine. Brass and stainless steel construction with a plastic adjustment knob.General Pump recommends using a safety relief device in conjunction with this unloader valve when installed on a positive displacement pump. General Pump is not liable and assumes no responsibility for this valve when used in a customer’s high pressure system.
Details and Specifications:
- Maximum Flow Rate: 10 GPM
- Maximum Pressure: 2600 PSI (2300 PSI rated pressure)
- Inlet/Outlet: 3/8" (x2) FNPT x 3/8" FNPT
- Bypass: 3/8" FNPT
- Dimensions: 7.12" x 3.2" x 2.3"
- Maximum Temperature: 194° Fahrenheit
- Materials: Brass, stainless steel, and Viton
- Blue spring
- No check valve
- Plastic adjustable control knob
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
