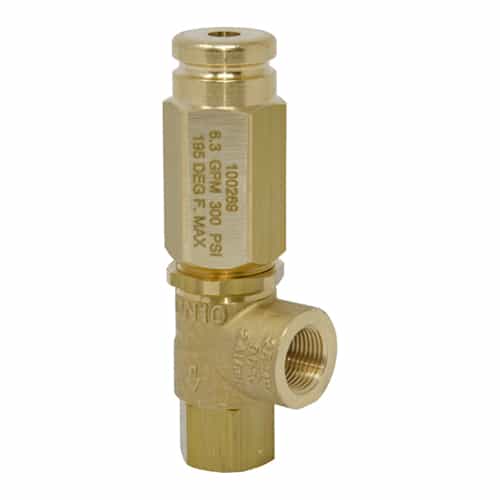

General Pump 100269 Regulating Valve, 6.3 GPM, 300 PSI
Brand:
Mfr. Model #:
100269
KR Part #:
GPP100269
Weight:
0.70 lbs
GTIN:
682491028550
(0)Low-pressure regulating valve from General Pump. Brass and stainless steel construction, Buna-N seals.
Technical Specifications
Max GPM: 6.3
Max PSI: 300
Max Temperature: 195 degrees F
Inlet Port: 3/8 inch
Bypass Port: 3/8 inch
Product Description
Regulating Valve
The General Pump 100269 regulating valve regulates the pressure and volume in your fluid system. It features a brass body, stainless steel internals, and Buna-N seals to fit a wide range of system specifications. Compact - only 1.35" by 4.5", weighs only 12.2 ounces!
Specifications:
- Maximum Volume: 6.3 GPM
- Maximum Pressure: 300 PSI
- Maximum Temperature: 195°F
- Inlet Port: 3/8"-19 BSPP-F
- Bypass Port: 3/8"-19 BSPP-F
